Standing Seem Profile

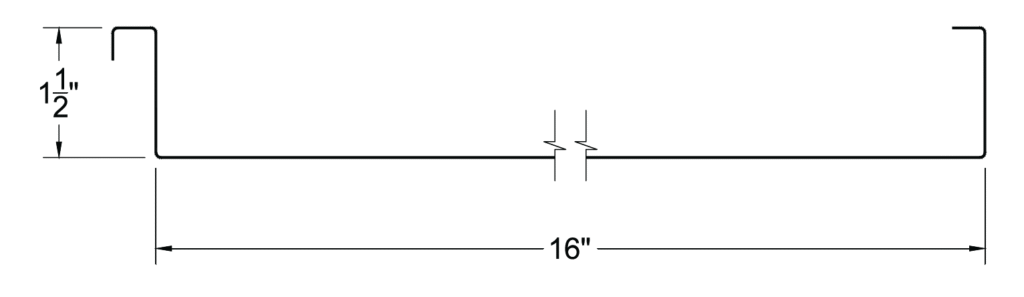

150SS PROFILE
Our FP 150SS roof system will lend striking dimension to any architectural design. This versatile 1-1⁄2″ mechanically seamed panel can be curved to a wide range of radiuses and applications – from barrel roofs to conical shapes and more. Concealed fasteners and a floating clip system reduce the effect of thermal stresses on the panels, helping to maintain a beautifully smooth, uniform appearance despite fluctuations in temperature.
Available Widths
12″, 14″, 16″, 18″, and 20″
Standard Panel Widths
16″, 20″
Fortified design pressures, wind uplifts and test reports are for specific deck attachments, material gauges, clip spacing and panel widths.
Painted Galvalume® – 24ga and 26ga
Drexlume™ – 24ga and 26ga
Aluminum – .032″
Copper – 16 oz and lead-coated copper
Zinc
Available in a wide variety of coatings and colors.
Refer to the Fortified Color Chart for standard colors and paint specifications.

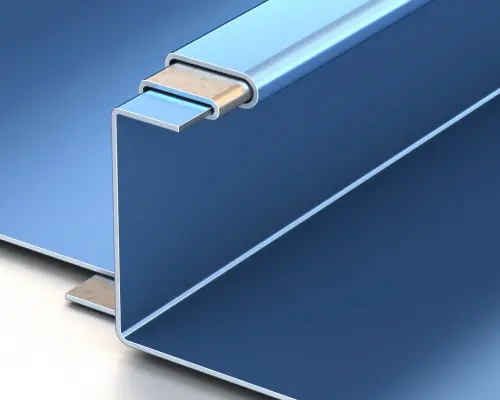

200SS PROFILE
The versatility of the FP 200SS roof system makes it
an ideal choice for low to steep slope applications. Performance-engineered to handle heavy-duty commercial and industrial projects, this 2” mechanically seamed structural metal roof system will meet or exceed most windload and government requirements from coast to coast. Concealed fasteners and floating clip systems reduce panel stress from changes in temperature and help maintain a smooth, uniform appearance. This product can also be curved for large barrel roofs or small canopies.
Available Widths 12″, 14″, 16″, and 18″
Fortified design pressures, wind uplifts and test reports are for specific deck attachments, material gauges, clip spacing and panel widths.
Painted Galvalume® – 22ga and 24ga
Drexlume™ – 22ga and 24ga
Aluminum – .040″
Available in a wide variety of coatings and colors.
Refer to the Fortified Color Chart for standard colors and paint specifications.
